Step 3e: ZWave - Security



The code for this step is found here.



One final change to our demo. Let's make the sensor and configuration classes secure. We'll use S0 so the zpiffer/zniffer can decrypt the packets, although setting up S2 would be simple.



The first edit is to src/config_app.h. Define REQUESTED_SECURITY_KEYS as SECURITY_KEY_S0_BIT. For S2 you would also OR in SECURITY_KEY_S2_UNAUTHENTICATED_BIT and SECURITY_KEY_S2_AUTHENTICATED_BIT.



The second edit is to our application. We don't need to change any functions, just create two arrays with the secured command class lists and add them to the NIF. The global arrays are named cc_open_secure and cc_secure. Move the COMMAND_CLASS_MULTISENSOR_ and COMMAND_CLASS_CONFIGURATION byte from cc_unsecure to cc_secure, and put COMMAND_CLASS_SECURITY in all three. Replace the NULL, 0 entries in appnif1 with the arrays and their length.



The third edit is to the sensor command class. Security when sending packets is controlled by flags in the transmit options. Our implementation in Step 3c has two triggers for sending a value: an incoming GET, or a button press. For the first the receive options will contain the security flags and the translation in the framework's RxToTxOptions() function will preserve them, so the reply will be encrypted if needed. For the second we faked receive options. Now, sendSensorValue() will check if we have an S0 key and set the appropriate flag, before translating to transmit options and sending.



In the project

  1. Link ${SDK}/ZAF/CommandClasses/Security/CC_Security.c under ZAF_CC/.

  2. Link on the file system ${SDK}/ZAF/CommandClasses/Security/CC_Security.h under ZAF_CC/.



Our changes are

object

status

role

description

appnif1 (global var)

edit

transport

mark secure command classes

REQUEST_SECURITY_KEYS

(config_app.h)

edit

security

enable S0

sendSensorValue

(CC_MultiSensor.c)

edit

security

button press sends values securely



The final project file listing is

hw/

src/

ZAF_AppUtil/

ZAF_CC/

displayconfigapp.h

config_app.h

ZAF_TSE.c

CC_Configuration.c

displayfont16x20HT.h

config_rf.h



CC_Configuration.h

em_types.h

HTSensor1.c



CC_MultiSensor.c

graphdisplay.c

i2cspmconfig.h



CC_MultiSensor.h

graphdisplay.h





CC_Version.c

textdisplay.c







testdisplayconfig.h







textdisplay.h







linked within Simplicity Studio

display.c



application_properties.c

CC_Supervision.c

displayls013b7dh03.c



AppTimer.c

CC_Security.c

displaypalemlib.c



board_BRD420x.c

multichannel.c

em_i2c.c



board_indicator.c



em_letimer.c



board.c



em_prs.c



ZAF_command_class_utils.c



gpiointerrupts.c



zaf_event_helper.c



i2cspm.c



ZAF_network_learn.c



startup_zgm13.S



ZAF_uart_utils.c



system_zgm13.c



ZW_TransportEndpoint.c







ZW_TransportMulticast.c







ZW_TransportSecProtocol.c



linked on file system







CC_Common.h







CC_Security.h







CC_Supervision.h







CC_Version.h







multichannel.h



With these changes the sensor readings are now sent secured.



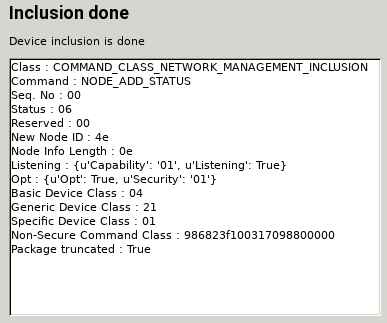

zipgateway inclusion info showing secured command classes

zipgateway information after secured inclusion. Command class list includes both unsecured (0x98 Security, 0x68 ZIP Name, 0x23 ZIP, 0xF1 S0_Mark) and secured (0x31 MultilevelSensor, 0x70 Configuration, 0x98 Security).

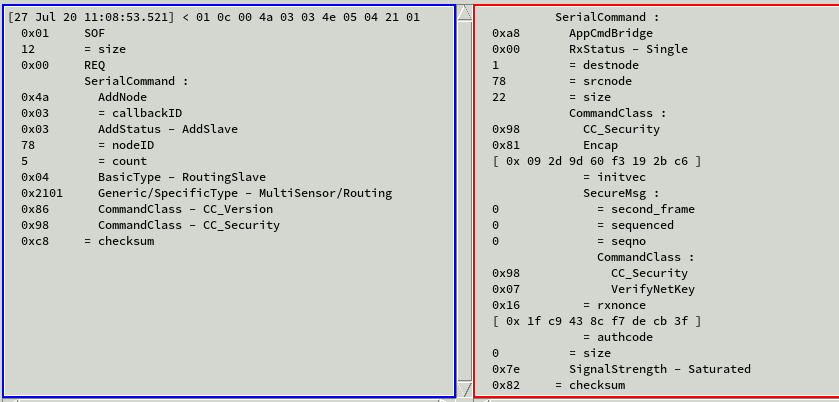

zpiffer trace of secured inclusion

zpiffer trace of inclusion. AppUpdate in left (blue) window shows only unsecured command classes. Right (red) window has network key verification from device to host.

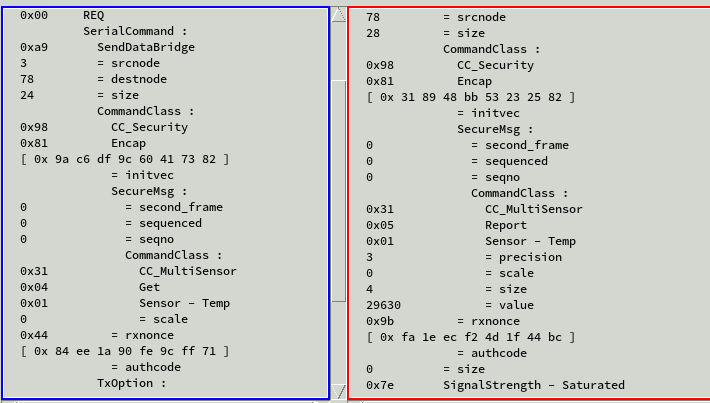

encrypted GET and REPORT of a temperature reading

Secured GET (left/blue) and REPORT (right/red) sequence for temperature reading. Nonce frame not shown.

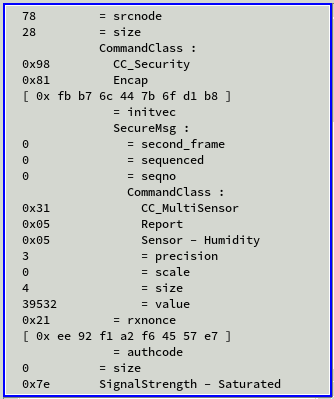

encrypted REPORT with humidity reading after button press

Button press sends secured humidity reading.



We'll wrap up the project with a review of all that's been done and an introduction to the other pieces of the framework.
